Introduction to TSX CTY2C Module

Description

The TSX CTY2C module is a counting module used in PREMIUM PLCs.

This module has two identical channels with the following main functions:

pulse up / down counting,
absolute encoder position acquisition,
speed (pulse frequency) measurement and monitoring.

The module also includes the following functions:

enable,
capture,
preset,
comparisons,
latch of transient events by means of two flip-flops,
four physical outputs,
event processing.

Illustration

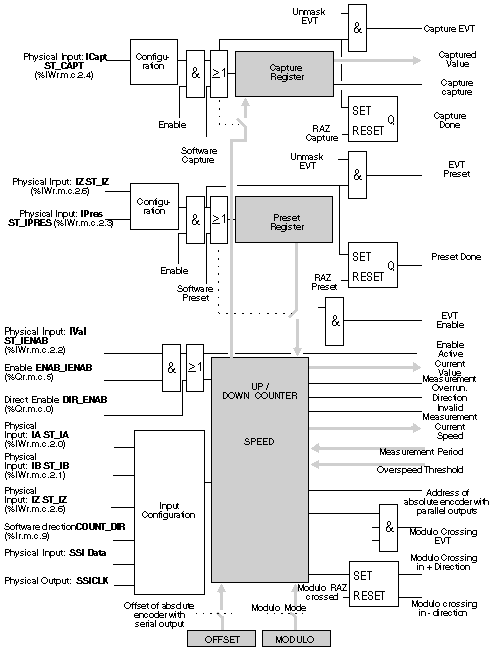

The illustration below shows the structure of the functional core of a channel (up / down counting and speed measurement, enable, preset and capture). To know the associated language objects see the implicit objects.
