In up/down counting and measurement mode, comparison can be used with:
threshold 0,
threshold 1,
There are four ways of comparing: current value and captured value in relation to the thresholds.
Operation

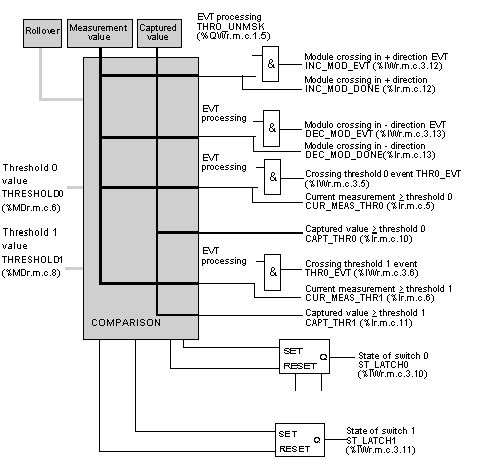

The figure below illustrates the operation of comparisons available in up / down counting mode in TSX CTY 2C modules. The associated language objects are described in the default objects section.
