Configuration Screen for the Module BMXETM0200H
Original instructions
About us
Configuration Screen

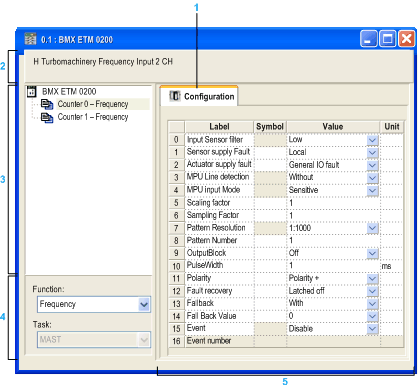

Module Configuration Window
The following table presents the various parts of the above screen:
Number
Element
Function
1
Tab
Indicate the type of tab displayed. In this case, it is the Configuration tab for the Counter 0.
2
Heading
Indicates the abbreviated heading of the module BMXETM0200H.
In online mode, the same area displays three icons that reflect the current status of the following LEDs:
  • RUN
  • ERR
  • IO
3
Module Selection
Allows you to select the module and displays:
  • The Overview tab that gives the characteristics of the module
  • The I/O Objects tab or Device DDT tab depending on the I/O data type selected at module insertion in the Control Expert project.
Channel Selection
Allows you to select the channel (Counter) and displays:
  • The Configuration tab that enables you to declare and configure each channel.
  • The Fault tab that gives active faults detected on the channel.
4
Function
Indicates the function name associated with each channel.
NOTE: On topological data model to access the Configuration tab, select Frequency. (by default it is None)
Task
Indicates the task associated with each channel.
5
Value
If these fields have a downward pointing arrow, you can select the value of each variable from various possible values in these fields. The various values can be accessed by clicking the arrow. A menu containing all the possible values is displayed to select the required value of the variable.
Unit
These fields contain the unit of each variable that may be configured. They may not be modified.
Channel Configuration Tab
Label Parameter
Default Value
Other Possible Values
Module Functionality
Input Sensor filter
Low
Without
Medium
High
Signal Filtering
Sensor supply Fault
Local
General IO fault
Sensor Interface
Actuator supply fault
General IO fault
Local
MPU Line detection
Without
With
MPU input Mode
Sensitive
Noisy
Scaling factor
1
2...1024
Signal Scaling
Sampling Factor
1
2...20
Frequency Meter
Pattern Resolution
1:1000
1:10000
Pattern Number
1
2...512
OutputBlock
Off
Frequency Less
Frequency Window
Frequency Great
Frequency Stopped
Frequency Under Limit
Frequency Over Limit
Pulse = Frequency Less
Pulse = Frequency Window
Pulse = Frequency Great
Scaling Pulse
Reflex Output Block
PulseWidth
1
2...65535
Polarity
Polarity +
Polarity -
Fault recovery
Latched off
Autorecovery
Fallback
With
Without
Fall Back Value
0
1
Event
Disable
Enable
Event
Event number
0
63
