Connecting the module TBX AMS 620
(Original Document)
About us
Circuit diagram

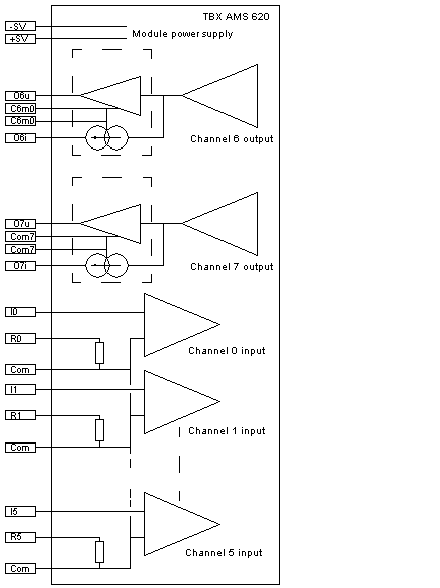

The following illustration shows the circuit diagram for the module TBX AMS 620.
NOTE: to use an input channel in current, the I and R terminals must be connected to the channel concerned.
All terminals referenced COM are connected in the module interior.
Terminal block wiring

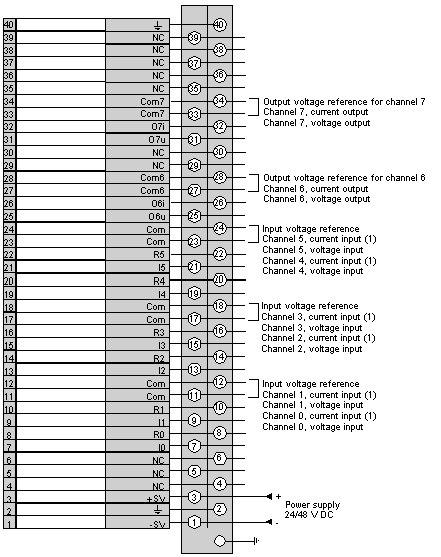

The following diagram illustrates the wiring of the terminal..
1
The current-voltage conversion resistances are incorporated in the base unit (and therefore require no external resistance).
