Wiring example for the TBX AES 400 module
(Original Document)
About us

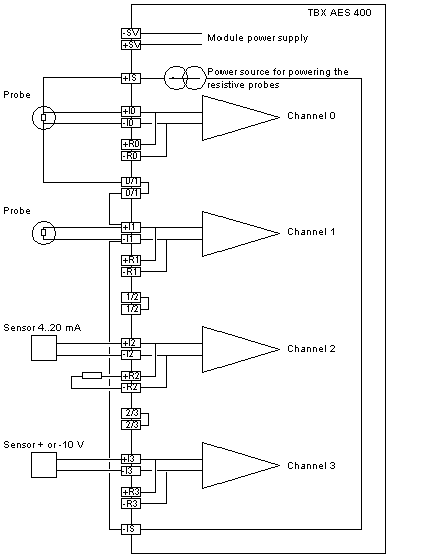

Circuit diagram
The following illustration shows the circuit diagram for the module TBX AES 400.

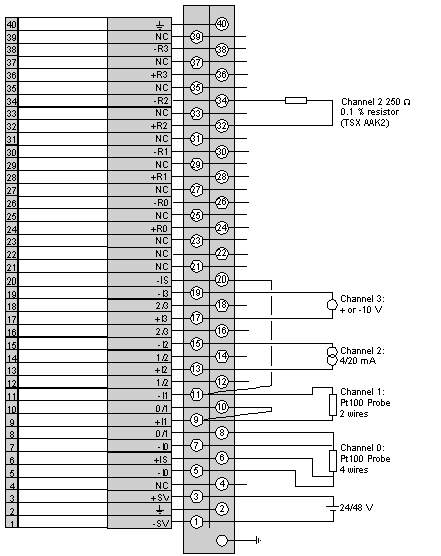

Terminal block wiring example
The following table shows the terminal block wiring example.
Terminal block wiring
Channel 0
Pt 100, 4 wires
Channel 1
Pt 100, 2 wires
Channel 2
4/20 mA
Channel 3
+ or -10 V
The following table shows the terminal block wiring example.
