Mounting the cover and the connection cable on an extension base unit
|
|
|
(Original Document)
|
|
Mounting the cover and the connection cable on an extension base unit
|
|
|
(Original Document)
|
|
Stage
|
Action
|
|---|---|
|
1
|

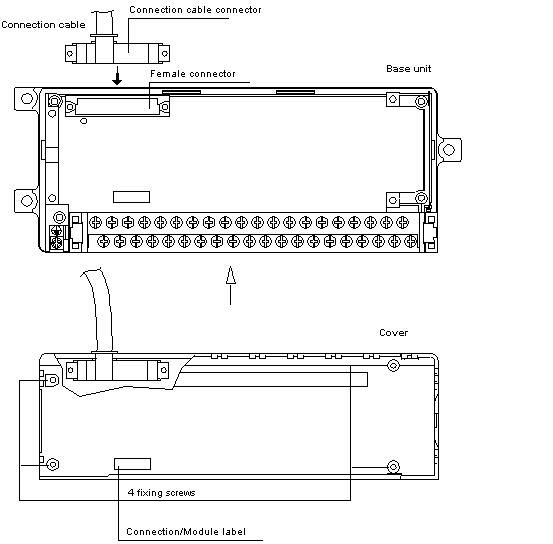

Plug in the connection cable connector to the base unit.
|
|
2
|
Once the Connection/Module labels are in place, fit the communication module on the base unit making sure that the female connector on the base unit is in line with the connection cable connector in the slot on the edge of the cover.
|
|
3
|
Secure the communication module to the base unit using 4 fixing screws.
|
