Mounting a communication module on a base unit
|
|
|
(Original Document)
|
|
Stage
|
Action
|
|---|---|
|
1
|

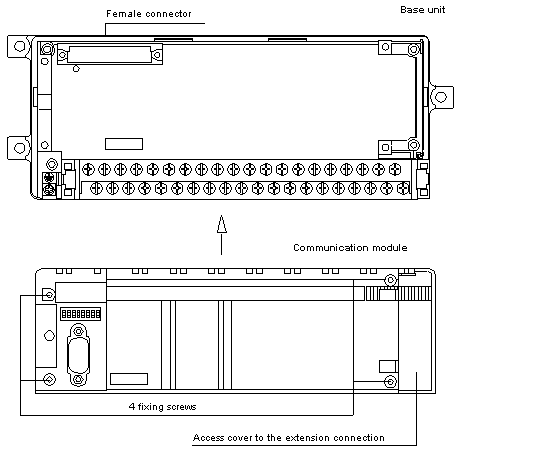

Once the Connection/Module labels are in place, fit the communication module on the base unit making sure that the female connector on the base unit is in line with the male connector, located underneath the communication module.
|
|
2
|
Secure the communication module to the base unit using 4 fixing screws.
|
