Attaching to the monobloc TBX
To simplify maintenance, complete the Connection/Module label as follows:

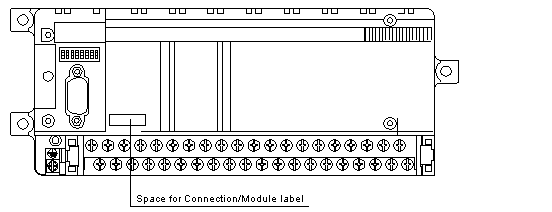

Attach the information label to the module in the space provided:
Attaching to the modular TBX
To simplify maintenance, complete the Connection/Module label as follows:
-
Co. = connection point address on the bus: 1 to 127,
-
Mod. = module number : 0 for the base unit and 1 for the extension.

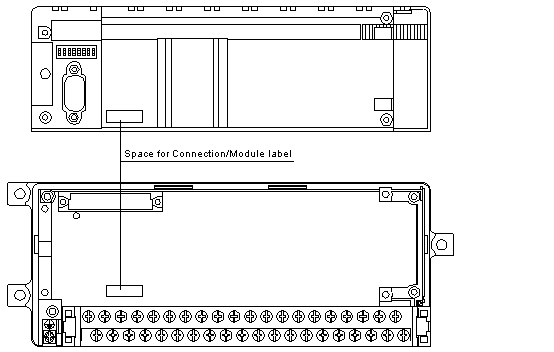

Attach the information label to the space provided on the communication module, on the cover of the extension module or on the base unit:
NOTE: for dust and damp proof modules (IP65), the label should be placed on the Fipio cable where it enters the TBX BLP 10 connector.
