Connecting the extension module to the base module
(Original Document)
About us
General

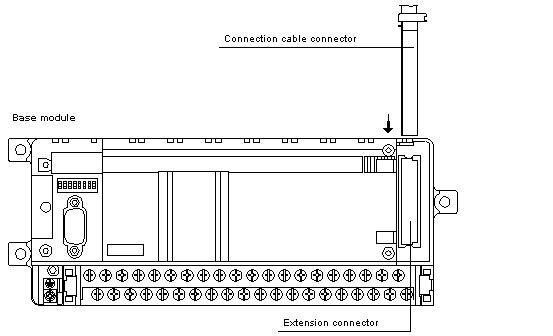

The following drawing shows the phase of connecting the extension module to the base module.
Mounting procedure
The following table describes the procedure of connecting the extension module to the base module.
Stage
Action
1
Raise the access cover to the extension connection.
2
Remove the cap in the access cover to the connector, which clears the passage for the connection cable.
3
Plug in the free connector of the connection cable (connector on the cable extension) to the female connector on the communication module.
4
Close the cover to allow the connection cable to pass through.
