Mounting the modules on Telequick mounting plate or DIN rail

General

Monobloc modules, modular TBX base units and the TBX SUP 10 power supply may be mounted on a Telequick mounting plate, or on a DIN rail (profile):

the modules are fixed to the mounting plate using 3 screws of diameter 4, in the fixing lugs,
fixing onto a DIN rail does not require any accessories.

NOTE: mounting on a Telequick mounting plate is recommended for installations where there is considerable vibration.

Whatever type of mounting is used, the installation instructions specific to TBX modules should be followed.

Mounting

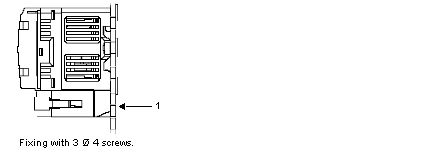

The following drawing shows mounting on a Telequick mounting plate.

AM1-PA mounting plate.

The following drawing shows mounting on DIN rail.

Combination rail width 35 mm AM1-ED200.

Omega rail width 35 mm AM1-DE200.

WARNING

UNEXPECTED SYSTEM BEHAVIOR - ELECTROMAGNETIC INTERFERENCES

To ensure correct operation of TBX modules in strong electromagnetic environments, they must be mounted on metal supports which are correctly connected to ground. The base and the extension modules of a modular TBX should be mounted on the same plate, on the same mounting DIN rail or on DIN rails which are connected by a metal cross-piece.

Failure to follow these instructions can result in death, serious injury, or equipment damage.
