Introduction

The following can be defined for steps:

To find a specific jump in the current section use the Go to dialog box.

Defining the step name

Defining the step name:

Step

Action

1

Open the properties dialog box for the step.

Result: The step properties dialog box is opened.

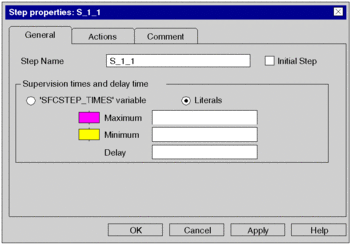

Example:

2

In order to change the name of the step, enter a step name in the Step Name text box, see also section Step names in the Reference manual.

3

Confirm the step names with OK.

Result: The selected step name is enabled, the properties dialog box is closed, and a syntax and semantics check is performed.

Defining an initial step

Defining an initial step:

Step

Action

1

Open the properties dialog box for the step.

Result: The step properties dialog box is opened.

2

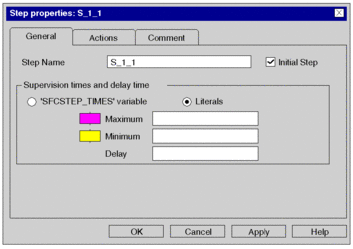

In order to define an initial step, activate the Initial Step check box, see also section Step types in the Reference manual.

Example:

3

Confirm the entry with OK.

Result: The selected step is enabled in the section as an initial step, the properties dialog box is closed, and a syntax and semantics check is performed.

Example:

Defining the supervision time/delay time as a literal

Defining the supervision time/delay time as a literal:

Step

Action

1

Open the properties dialog box for the step.

Result: The step properties dialog box is opened.

2

In the Supervision times and delay time area, activate the Literal option button if it isn't already activated.

3

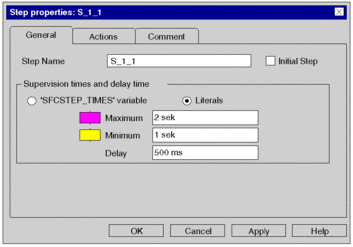

Enter a value for the minimum supervision time, the maximum supervision time and the delay time, see also section Step times in the Reference manual.

Example:

4

Confirm the entries with OK.

Result: The step times are enabled, the properties dialog box is closed, and a syntax and semantics check is performed.

Defining the supervision time/delay time as an SFCSTEP_TIMES variable

Defining the supervision time/delay time as an SFCSTEP_TIMES variable:

Step

Action

1

Open the properties dialog box for the step.

Result: The step properties dialog box is opened.

2

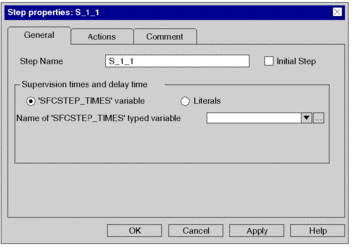

In the Supervision times and delay time area, activate the 'SFCSTEP_TIMES' variable option button if it isn't already activated.

Example:

3

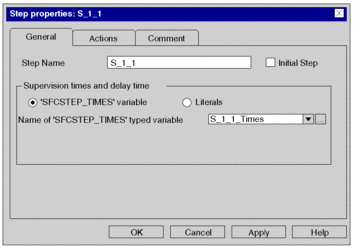

In the data selection box, specify a variable of the SFCSTEP_TIMES data type.

You have the following options to enter variables:

  • You can enter the name of the variable.

  • You can select the name of the variable from the list of recently used names using the symbol.

    or

  • Using the command button ... you can open a variable selection dialog box and confirm the selected variables there with OK.

Example:

4

Confirm the entries with OK.

Result: The selected SFCSTEP_TIMES variable is enabled, the properties dialog box is closed, and a syntax and semantics check is performed.

If the variable has already been declared (see also Derived variable declaration), the procedure ends here.

If the SFCSTEP_TIMES variable has not yet been declared, process the following steps.

5

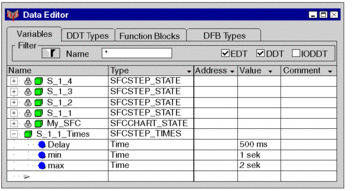

Declare a derived variable of the SFCSTEP_TIMES data type, see also Derived variable declaration.

Example:

6

Enter a value for the minimum supervision time, the maximum supervision time and the delay time, see also section Step times in the Reference manual.

Example:

Result: The SFCSTEP_TIMES variable is declared and the step frame is displayed in black.

Enter a comment

Enter a comment:

Step

Action

1

Open the properties dialog box for the step.

2

Select the Comment tab and enter a step comment.

3

Confirm the comment with OK.

Result: The comment is accepted and the properties dialog box is closed.
