The
MC_POWER function is used to move the
AXIS status from
Disabled to Standstill.

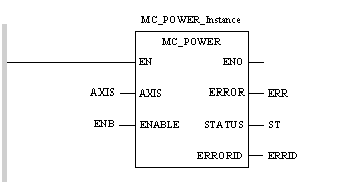

Representation:
Representation:
Representation:
LD Axis
CAL MC_POWER_Instance(AXIS:=AXIS, ENABLE:=ENB, ERROR=>ERR, STATUS=>ST, ERRORID=>ERRID)
Representation:
MC_POWER_Instance(AXIS:=AXIS, ENABLE:=ENB, ERROR=>ERR, STATUS=>ST, ERRORID=>ERRID);
Description of the Output Parameters
The following table describes the output parameter that is in addition to the
basic parameters:
|
Parameter
|
Type
|
Comment
|
|
STATUS
|
|
If STATUS is set to TRUE, the status is Standstill. If STATUS is set to FALSE, the status is Disabled. |
