Configuration of the Reflex Discrete Module
(Original Document)
About us
Introduction
The
TSX DMY 28RFK
reflex
discrete
module specifies
the parameters of the standard discrete inputs/outputs
.
However, it has its own specific parameters, such as:
the assignment, for a given output channel, of a reflex function
,
the association of an event with a virtual output
.
A reflex function, thus assigned to a given channel,
must in turn be configured and have its internal parameters adjusted
.
Illustration

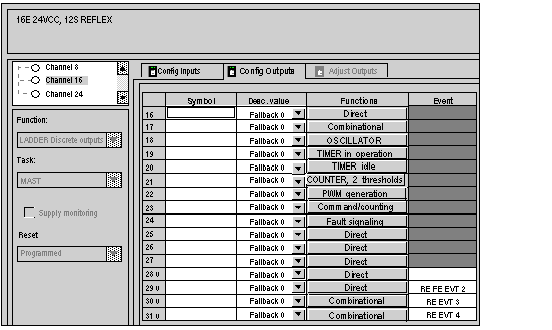

The following screen shows a few examples of function assignments for a given channel.
