Description of the reflex function configuration editor
(Original Document)
About us
At a Glance
The reflex function configuration editor consists of a grid allowing you to choose the function block and to enter graphic objects relating to the sequential logic of the block.
Illustration

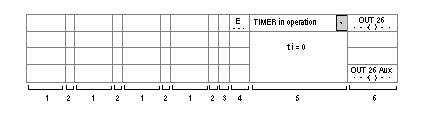

The following illustration shows the configuration zone of a reflex function block.
Description
The following table shows the various parts of the configuration zone.
Address
Function
1
Columns allowing contacts to be entered with their associated language object.
2
Columns allowing horizontal and vertical links to be entered between the contacts.
3
Column allowing the inputs of function blocks to be set to 1 or linked with the combinational block.
4
Column displaying the inputs relating to the function block selected.
5
Column:
  • displaying the type of internal parameter used by the block,
  • making it possible to select the chosen reflex function.
6
Column allowing the type of output coil to be entered.
Description of graphic objects
The following table shows the various graphic objects available depending on the welcome cell or column.
Object
Column(s)
Description
-- --
1, 2, 3
Empty field
-----------
1, 2, 3
Horizontal link
------ | ------
2
Vertical link
1 -
3
Input set to 1
----| |----
1
Normally open contact
----|/|----
1
Normally closed contact
----( )----
6
Direct coil
----(/)----
6
Negated coil
