How to set the configuration parameters of a reflex function
(Original Document)
About us
Introduction
Some reflex function blocks have internal parameters (values between 0 and 65535), which they need for operation (e.g.  : time thresholds).
These parameters can be modified :
Instructions
The following table describes the procedure for modifying the adjustment parameters of a reflex function block.
Step
Action
1
Access the module configuration screen.
2
Select the Adjust outputs tab.

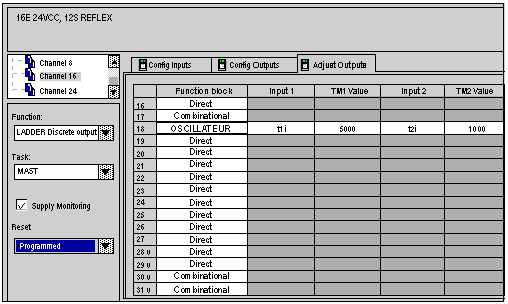

Result: the following screen appears:
3
For the channel concerned, select the cell corresponding to the parameter to be entered.
4
Enter the parameter.
5
Confirm the modification with the Edit → Validate menu command.
