How to Add a Device on the Bus
|
|
|
(Original Document)
|
|
Step
|
Action
|
|---|---|
|
1
|
Access the Fipio configuration screen.
|
|
2
|
Right-click on the logical address of the connection point, at the location where the module has to be connected (available addresses from 1 to 62 and 64 to 127, addresses 0 and 63 being reserved by the system).

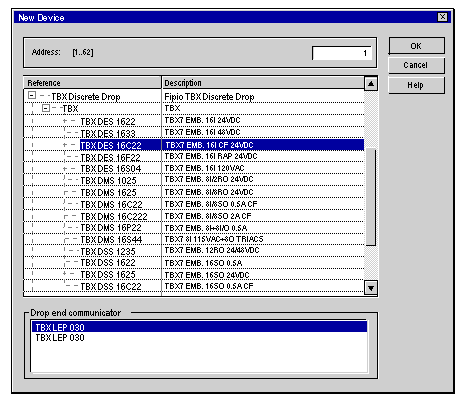

Result: the New Device screen appears.
 |
|
3
|
Enter the number of the connection point corresponding to the address.
By default, the Control Expert software offers the first free consecutive address.
|
|
4
|
In the Reference field, enter the type of device to connect to the bus.
|
|
5
|
In the Communicator field, select the element type enabling communication on the Fipio bus.
For modules with built-in communicators, this window does not appear.
|
|
6
|
Validate with Ok.

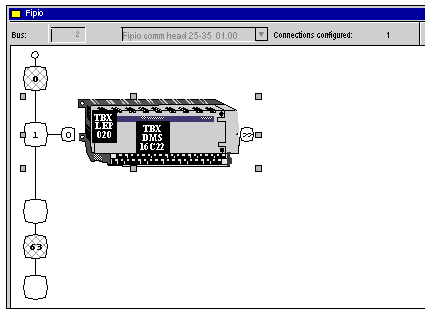

Result: the module is declared.
 |
