How to Access the Fipio Bus Configuration Screen
(Original Document)
About us
At a Glance
This describes how to access the configuration screen of the Fipio bus for a Premium or Atrium PLC with a built-in Fipio link.
Procedure
To access the Fipio field bus, perform the following actions:
Step
Action
1
From the project navigator, deploy the Configuration directory.

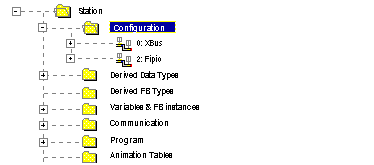

Result: the following screen appears
2
Select the Fipio sub-directory and select the Opencommand using the contextual menu.

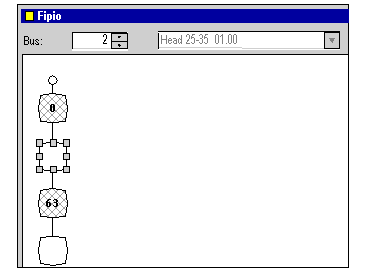

Result: the Fipio window appears
