How to Add an Extension Module on the Bus
(Original Document)
About us
Procedure
This operation is used to add, via the software, an extension module to a base module which is connected to the Fipio bus.
Step
Action
1

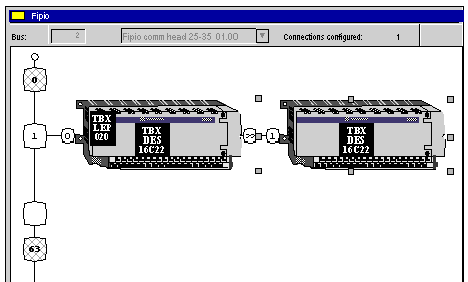

Access the Fipio configuration screen.
2
On the base module, select the connection point which is shown as .
3
From the contextual menu, select New Device.

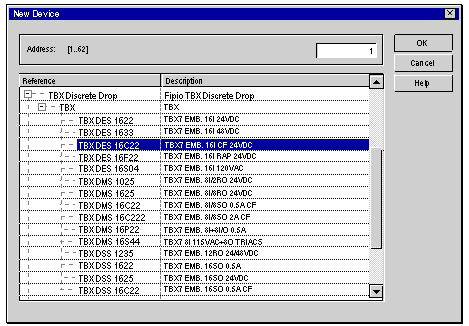

Result: the New Device screen appears.
4
In the Reference field, select the type of device to connect to the base module.
5
Validate with Ok.
Result: the module is declared.
