Building the Program
Next, you need to build the whole program before downloading it to the PLC. To do this, select Build\Rebuild All Project in the toolbar at the bottom of the screen (shown below). If it is successful, a Process succeeded message will appear at the program’s completion.
Connection Options
In order to run the configuration program it must first be downloaded to the PLC. Prior to downloading the program the PLC must be connected to the PC containing the Control Expert software. The connection can be accomplished using a a communication network such as Ethernet, USB, or Unitelway. We describe both the USB and Unitelway setups in the following examples.
Connecting the PC to the PLC with a USB Cable
Proceed as follows to connect the PC to the PLC with USB.
Step
Action
1
Ensure that the Premium system is powered up.
2
Select the standard mode on the upper toolbar.
3
Connect the PLC to the PC with a USB cable.
4
On the PC, click the Control Expert PLC\Set Address tab to bring up the Set Address dialog box.
5

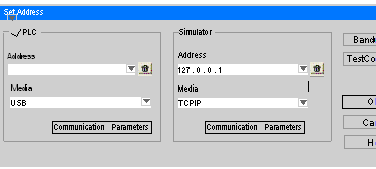

Select USB in the PLC Media box.
6
Leave the PLC Address box blank.
7
Click OK.
8
Proceed to Downloading and Running the Configuration Program .
Using a Unitelway Link
Proceed as follows to setup the PC with Unitelway.
Step
Action
1
Ensure that the Premium system is powered up.
2
Connect the PLC to the PC with a Unitelway (serial) cable.
3
On the PC, click the Control Expert PLC\Set Address tab to bring up the Set Address dialog box.
4

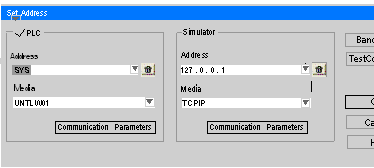

Select UNTLW01 in the PLC Media box.
5
Select SYS in the PLC Address box.
6
Click OK .
7
Proceed to Downloading and Running the Configuration Program (below).
Downloading and Running the Configuration Program
Once the PC and the PLC are connected as describe above, the configuration program can be downloaded to the PLC.
Step
Action
1
On the PC, select PLC\Connect on the Control Expert screen.
2

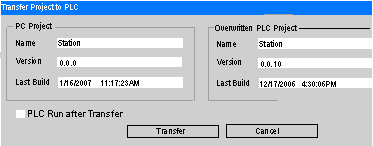

Click the PLC\Transfer Project to PLC tab to bring up the Transfer Project to PLC dialog box.
3
Click the Transfer button to download the program to the PLC.
4
When the confirm screen appears, click OK.
5
Click Run on the Control Expert upper toolbar to start the program.
