With Control Expert software, it is possible to access bus slave configuration. The information on the screen is almost identical to the debugging screen information.
Illustration

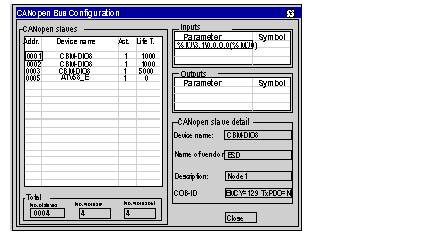

The following diagram presents the screen which displays slave configuration.
Operation
Click on a slave from the list of CANopen slaves.
The input and output slave parameters appear in the Inputs and Outputs areas. A clearer explanation is given with the display of the CANopen topological address and reserved memory area in the PLC.
Information about slave appears in the CANopen slave detail zone.
