General
When the CANopen bus is configured in load mode by Sycon, it is possible to download the configuration onto the TSX CPP 110 card using the X-Way driver.
This download can be performed over an Ethernet network, or simply on a Uni-Telway bus.
NOTE: MAKE SURE you always put the PLC in STOP mode during the downloading process.
NOTE: When the choice of X-Way communication driver has been validated, you must exit the Sycon software to change the driver.
Procedure
This table describes the steps to be carried out to load the configuration of a CANopen card using the X-Way communication drivers.
Step
Action
1
Connect to the PLC, which contains the TSX CPP 110 card with the help of the Control Expert software.
2
Switch this PLC to STOP mode.
3
Launch the Sycon software.
4
Load or create the desired configuration with the help of the Sycon software.
5
Select the command Online → Load.
Result: a message appears, which indicates that while the configuration is loading, communication between the slaves will be stopped.
6
Click on Yes to indicate that you accept this halt in inter-slave communication.

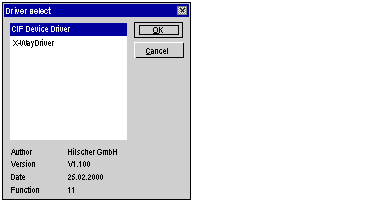

Result: a selection window for the X-Way or CIF driver appears.
7
Select the X-Way driver then click OK.

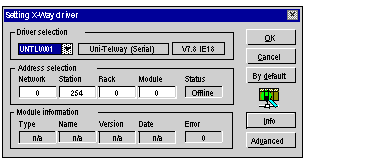

Result: the Setting X-Way driver window appears.
8
Select the required driver (Uni-Telway, XIP etc.) from the Driver selection group box.
9
Enter the PLC address (Network, Station, Module, Rack) then click on OK to start the loading process.
Result: during loading, a window indicates the progress of the data transfer. When the transfer is complete, this window disappears and makes way for the main bus configuration screen.
