Delete/Move/Duplicate a Device on the CANopen Bus
Original instructions
About us
Deleting a Device
To delete a device follow these steps:
Step
Action
1
Access the CANopen bus editor.
2
Right-click the connection point of the device to be deleted and click Delete Drop.
Moving a Device
Moving a device does not involve a physical move on the bus, but rather a change in the device topological address. The name of the device DDT instance change except if you have manually modified the default name of your device in the CANopen X80 master module DTM.
To move a device, follow these steps:
Step
Action
1
Access the CANopen bus editor.
2
Select the connection point to be moved: a frame surrounds the selected connection point.
3
Drag and drop the connection point to be moved to an empty connection point.

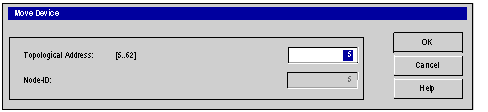

Result: the Move Device window is displayed:
4
Type the number of the destination connection point.
5
Click OK to confirm the new connection point.
Duplicating a Device
To duplicate a device, follow these steps:
Step
Action
1
Access the CANopen bus editor.
2
Right-click the device to be copied and click Copy.
3
Right-click the destination connection point and click Paste.

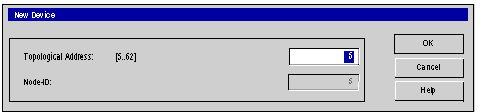

Result: the New Device window is displayed:
4
Type the number of the destination connection point.
5
Click OK to confirm the new connection point.
