Overview

You can open the EXPORT window by right-clicking, in the SYSTEM PROJECT pane, a device, a selection of devices, or the Topology node and selecting Export.

It lets you export to file the content of the Topology node or parts of it including related objects such as physical views and physical links.

You can open only one EXPORT window at a time.

The view is refreshed when you or other users modify the topology of the system project or the configuration of objects.

Description

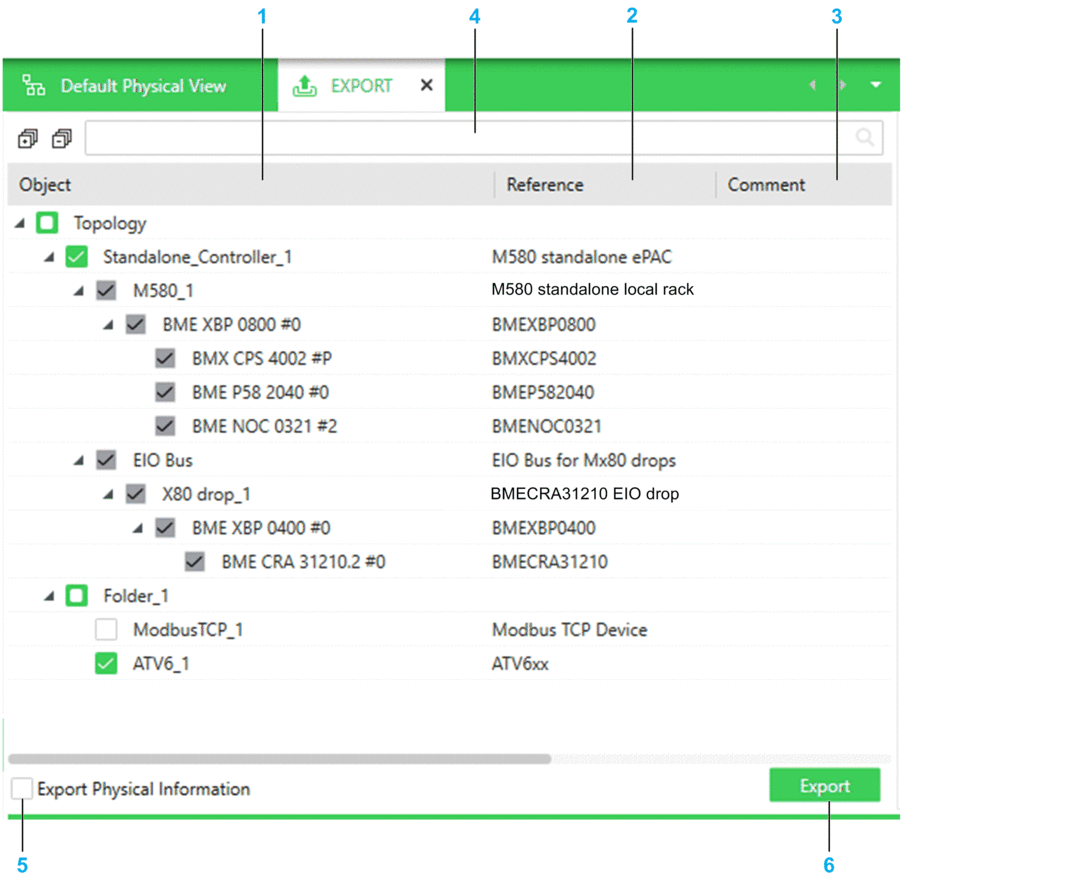

The following figure shows an example of the EXPORT window in which some devices of the system project have been selected for export.

Item

Description

1

Displays all the objects of the Topology node that you can export. You can modify the selection by selecting/clearing check boxes of objects, including topological folders.

The default selection of objects varies depending from where you have selected the Export command:

  • From one or more devices: Only these devices are selected.

  • From the Topology node: All the devices and folders are selected.

  • From a folder: The folder itself and its content.

Selecting a device automatically selects its modules.

2

Reference of the device as it appears in the PROPERTIES pane.

3

Comment that you have entered for the object in the PROPERTIES pane.

4

Search field. Enter one or more terms separated by a space and the pane displays objects whose name contains any of these terms. Objects are displayed with their parent structure.

NOTE: Exporting the topology while a search result is displayed also exports the other objects that are selected even though they are not displayed.

5

Select the check box to include in the export file the following:

  • The physical view to which an object that is exported has been added. The exported physical view contains only objects that are selected for export.

  • Physical links.

6

Opens the Export dialog box, which lets you select an export file name, file location, and proceed with the export operation.
