CANopen Bus Configuration Lexium 32
(Original Document)
Overview
The implementation methodology for a CANopen bus using Modicon M340 is to:
How to Upgrade the Hardware Catalog
This table describes the procedure to configure the CANopen slave.
Step
Action
1
Open the Hardware Catalog Manager
Start → Programs → EcoStruxure Control Expert → Hardware Catalog Manager

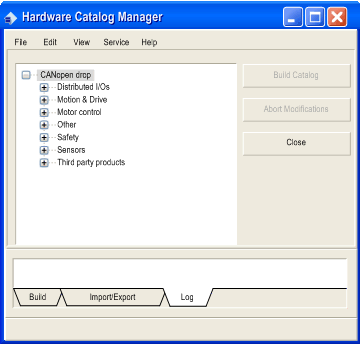

Result:The Hardware Catalog Manager window appears:
2
In the menu tab, click on File ==>Import User Devices, then import the LXM32_MFB.cpx file in the directory ...\ProgramData\Schneider Electric\ConfCatalog\Database\Motion (this file can be located in a hidden directory).
How to Configure the CANopen Slave
This table describes the procedure to configure the CANopen slave.
Step
Action
1
In the Control Expert Project Browser, fully expand the Configuration directory and then double-click on CANopen.
Result: The CANopen window appears:
2
Select Edit → New device.
Result: The New Device window appears:
3
Set 3 in Topological Address.
For the slave device choose Lexium 32.
4
Click on OK to confirm the choice.

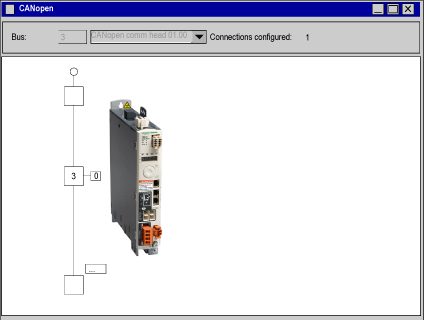

Result: The CANopen window appears with the new device selected:
5
Select Edit → Open module.
If MFB has not already been selected, choose it in the Function area.
6
You will be asked to validate your modifications when closing the Device and CANopen windows.
