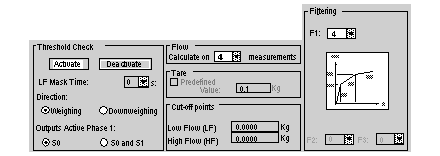

Description of the Parameter Setting Zone
|
|
|
(Original Document)
|
|
Address
|
Description
|
|---|---|
|
You have the possibility to modify for each phase the filter coefficient value of the measurement input.
You can choose a value from 0 to 19.
Note: The stronger the filter (value from 1 to 11), the longer the response time.
|
|
|
You have the possibility to modify the number of measurements for the flow calculation.
The listed choices carry the values 2, 4, 8 16, 32 and 64.
|
|
|
Read only area where you could see the predefined tare value configured in local mode.
|
|
|
The following parameters are displayed only if the Threshold monitoring option has been activated during configuration. Recognition of parameters is effected from the confirmation command in the Edit menu.
|
|
|
Activate
|
This key activates the threshold check monitoring cycle.
|
|
Deactivate
|
This key deactivates the threshold check monitoring cycle and positions outputs S0 and S1 into fallback mode.
|
|
LF mask time
|
Lets the user modify the mask time during switch to low flow.
|
|
Weighing/Downweighing direction
|
Lets you modify the threshold recognition.
|
|
Phase 1 active outputs
|
Lets you choose the active outputs during the first dosage phase.
|
|
Low flow (PD) and high flow (GD) cut off points
|
Lets you modify the threshold values.
|
