Access to dip-switches SW1 and SW2 (IP20 discrete base units)
(Original Document)
About us
General

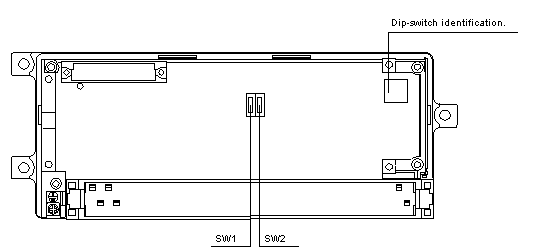

The following drawing shows the location of the dip-‐switches SW1 and SW2 on TBX discrete IP20 base units.
Procedure to follow
The following table describes the procedure for accessing the dip‐switches SW1 and SW2 located on the electronic board.
Stage
Action
1
Unplug the terminal block from the base unit.
2
Open the access hatch on the electronic board, pivoting it towards the back (opposite side to the terminal block).
