Mounting/Removing the Terminal Block
(Original Document)
About us
General

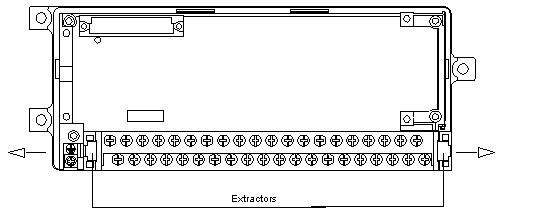

The following drawing shows the mounting/removing phase for the terminal block.
Removal Procedure
The following table describes the procedure for removing the terminal block.
Step
Action
1
To remove the terminal block, simultaneously pull the two extractors on each side of the terminal block, indicated by arrows on the drawing.
Mounting Procedure
The following table describes the procedure for mounting the terminal block.
Step
Action
1
To replace the terminal block, place it in its position and press on each side of the closed protective cover, snapping it into place. The two extractors, which were in the open position, then close.
DANGER
ELECTRIC SHOCK
Always turn off the power before mounting, removing or replacing the terminal block.
Failure to follow these instructions will result in death or serious injury.
