TBX SUP 10 power supply module

General

For sites which do not have a 24 V DC power supply, you are provided with a TBX SUP 10 24 V DC / 1 A power supply module. This provides the power required for a number of TBX modules.

The primary of this power supply module is itself powered by 110/230 V AC 50/60 Hz or 110/125 V DC.

Physical description

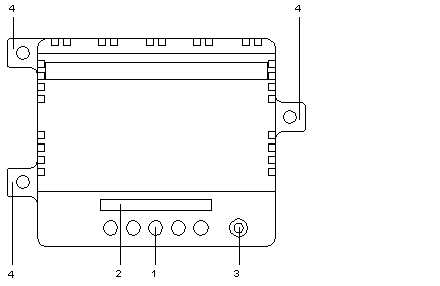

The following diagram shows the power supply module TBX SUP 10.

The following table describes the various elements of the power supply module TBX SUP 10.

Number	Description
1	Screw terminal block for wiring to power supplies.
2	Identification label for wiring terminals.
3	Power ON indicator lamp.
4	Fixing lugs for the module.
