Wiring and characteristics of the TBX SUP 10 power supply module
(Original Document)
About us
Wiring

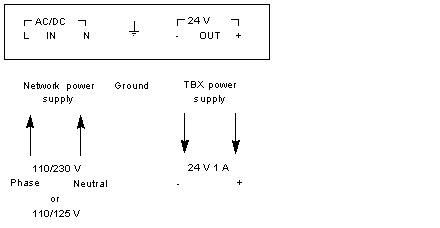

The following diagram shows the TBX SUP 10 power supply module wiring diagram.
NOTE: Primary : If the module is powered by 110/230 V AC, neutral and live connections must be respected when wiring. However, if the module is powered by 110/125 V DC, polarity is not important.
WARNING
RISK OF ELECTRICAL SHOCK
Connect the ground terminal of the module to the protective ground using a green/yellow wire.
The -24 V terminal (0 V potential) must be connected to ground at the power supply module output.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
Characteristics
The following table describes the technical characteristics of the power supply module TBX SUP 10.
Primary
Nominal voltage
100 - 110 - 120 V AC
110 - 125 V DC
200 - 230 - 240 V AC
Voltage limits
90 - 264 V AC
88 - 156 V DC
Frequency
47 - 63 Hz
Secondary
Output power
24 W
Output voltage
24 V DC 5%
Maximum current
1 A
Protection
against short-circuits, overload and overvoltage
Hold time
≥10 ms
Climatic environment
Storage
-25 to +70 °C
Operation
0 to 60 °C
Relative humidity
5 to 95% (without condensation)
Altitude
0 to 2000m
