Modification of the Channel Filtering Value
(Original Document)
About us
At a Glance
This function is used to modify the filtering value for one or more channels of an analog module.
The available commands are:
Procedure
The table below shows the procedure for changing a Filtering value.
Step
Action for one channel
1
Access the Debug screen.
2
Select the channel to modify in the Parameters in progress area and double-click on the corresponding box in the Filter column.
Result: the Adjust Channel dialog box appears.
3

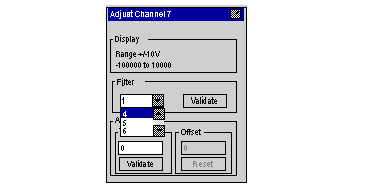

Click on the small arrow in the Filter field of the Adjust Channel dialog box, and define in the drop-down menu the new selected value.
4
Confirm the selection by clicking Validate and closing the Adjust Channel dialog box.
5
The new filtering value then appears in the box corresponding to the selected channel, in the Filter column of the Parameters in progress area.
