Introduction
Use the Control Expert ping function to send an ICMP echo request to the 140CRP31200 head module. The request determines if the target device is present. If the target device is present, the request determines the time elapsed until an echo response from the target device is received.
Access the Ping Tab
Open the Control Expert Ping tab:
Step |
Action |
|---|---|
1 |
In Control Expert, access the 140CRP31200 head module for Online Action. |
2 |
Double-click on the 140CRP31200 head module in the Control Expert rack view. |
3 |
Select the Ping tab. |
Ping Tab

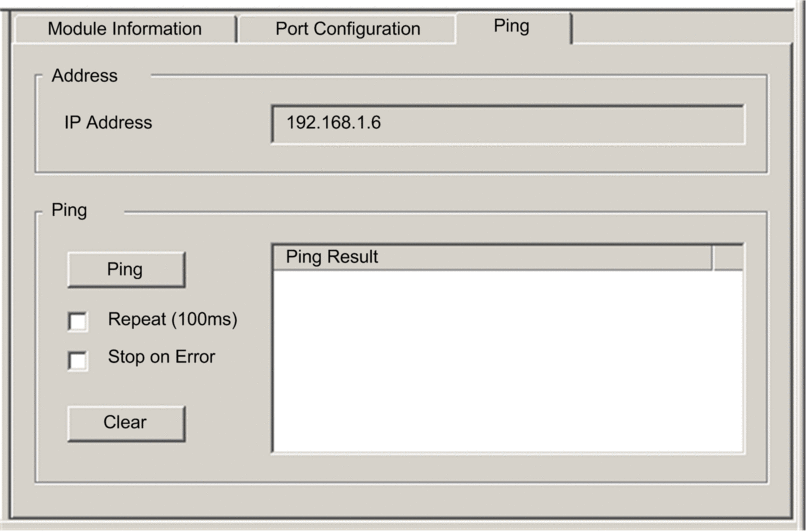

This illustration shows the Ping tab and its parameters:
Ping parameters:
Field |
Parameter |
Value |
Comment |
|---|---|---|---|
Address |
IP Address |
— |
IP address of the target module. |
Ping |
Repeat (100ms) |
checked |
Ping once. |
unchecked |
Ping every 100 ms. |
||
Stop on Error |
checked |
Stop pinging when a detected communication error is displayed. |
|
unchecked |
Continue pinging when a detected communication error is displayed. |
||
Ping (button) |
— |
Start pinging. (Click again to stop repeated pinging when no detected error is displayed.) |
|
Ping Result |
— |
This box reports the response to the ping. |
|
Clear (button) |
— |
Click this button to clear (empty) . |
