File and Device Info Screen

General

This screen provides a comparison between:

The file properties to be transferred to a selected device (File area).
The OS properties available in the target module (Device area).

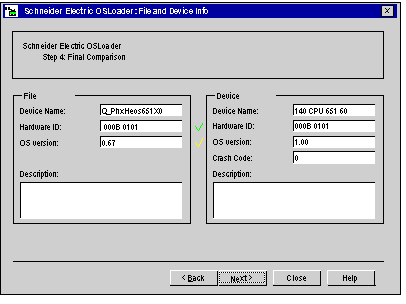

Illustration

The main elements of the File and Device Info screen are described in the following paragraphs.

Comparison

The Comparison of File and Device field is divided into two main parts:

The properties of the OS file to be downloaded.
The properties of the OS already in the target device.

NOTE: Refer to Error Codes for the Crash Code field description.

NOTE: Colored markers make it easier when comparing properties.

Green Marker

Representation:

Meaning:

Property	To be transferred		Current
Hardware ID	Operating system file	=	Operating System
OS version	Operating system file	≥	Operating System

Red Marker

Representation:

Meaning:

Property	To be transferred		Current
Hardware ID	Operating system file	≠	Operating System

NOTE: Proceeding to the next step is NOT possible if the hardware identification codes are incompatible. The navigation button Next is then disabled.

Yellow Marker

Representation:

Meaning:

Property	To be transferred		Current
Hardware ID	Operating system file	=	Operating System
OS version	Operating system file:	<	Operating System
or
OS version	One of the version numbers cannot be determined.

WARNING

UNEXPECTED EQUIPMENT OPERATION

You must test the application and address any safety issues before the system is returned to operation. Transfer of the operating system may cause changes in the behavior of the application.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

Navigation Buttons

The navigation buttons, located at the bottom of the screen, are: Back: Return to the previous step. Next: Proceed to the next step. Close: Exit the software. Help: Access the online help.
