Calling the properties dialog box

see Displaying the object properties

Structure of the properties dialog box

The OutStep properties dialog box consists of two tabs:

  • General

    In this tab you can define:

  • Comment

    In this tab, a comment about the OutStep can be entered.

General tab

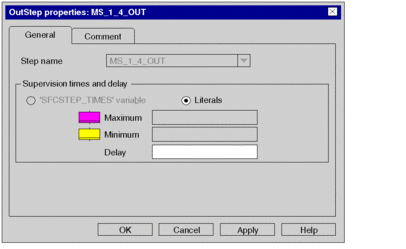

Representation of the General tab:

Elements of the General tab:

Element

Description

Step Name

The names of OutSteps cannot be changed, see also section Step names in the Reference manual.

Supervision times and delay time

Define the delay time in this area, see also section Step times in the Reference manual. For OutSteps, the delay time can be exclusively defined as literal.

  • Maximum

    Not available

  • Minimum

    Not available

  • Delay

    Enter the delay time for the current OutStep in this text box.

OK

Use this command button to accept all entries and close the dialog box.

Apply

Use this command button to accept all entries without closing the properties dialog box.

Comment tab

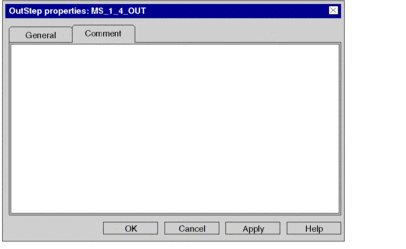

Representation of the Comment tab:

Elements of the Comment tab:

Element

Description

Text box

Enter a comment about the OutStep.

OK

Use this command button to accept all entries and close the dialog box.

Apply

Use this command button to accept all entries without closing the properties dialog box.
