Introduction
The following can be defined for InSteps:
Defining the supervision time/delay time
Defining the supervision time/delay time as a literal:
Step |
Action |
---|---|
1 |
Open the properties dialog box for the InStep. Result: The properties dialog box for the step is opened, see also InSteps properties dialog box. |
2 |

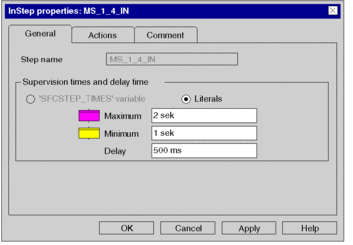

Enter a value for the minimum supervision time, the maximum supervision time and the delay time, see also section Step times in the Reference manual. Example: ![]() |
3 |
Confirm the entries with .Result: The step times are enabled, the properties dialog box is closed, and a syntax and semantics check is performed. |
Entering a comment
Entering a comment:
Step |
Action |
---|---|
1 |
Open the properties dialog box for the InStep. |
2 |
Select the tab and enter a step comment. |
3 |
Confirm the comment with .Result: The comment is enabled and the properties dialog box is closed. |
