Overview

An animation table is divided into 3 areas that include:

  • the Mode area,

  • the Command area,

  • the Display area,

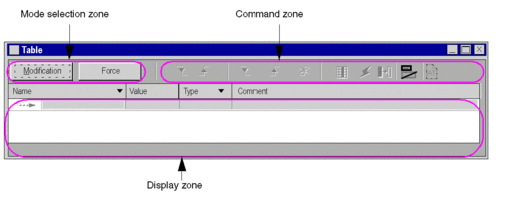

Animation table:

Online and Offline Mode

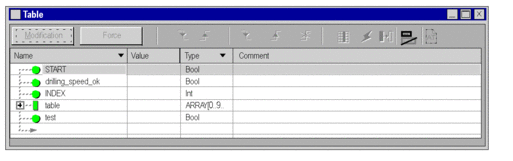

In offline mode, an animation table does not display values associated with the variables:

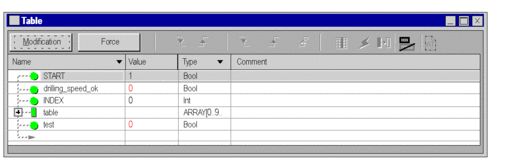

In online mode, an animation table displays the values of the variables.
