Creating a New Animation Table

Carry out the following actions:

Step

Action

1

In the project browser, go to the Animation Tables directory.

2

From the contextual menu; select the New Animation Table command; the table is created with a default name.

3

If you wish, you can rename the table by clicking on its name in the project browser.

Opening an Existing Animation Table

Carry out the following actions:

Step

Action

1

Select the desired table in the Animation Tables directory.

2

Either:

  • Select the Open command from the contextual menu,

  • or double-click on the name of the table.

Variables that were displayed previously in the table are re-loaded into the table.

Attaching an Animation Table to a Functional Module

Carry out the following actions:

Step

Action

1

Display the Structural View and the Functional View.

2

Select the desired table in the Animation Tables directory in Structural View.

3

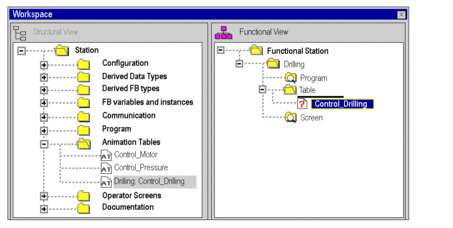

From the Structural View, use the mouse to drag\drop the animation table into the desired functional module in the Functional View. The authorized insertion point of the animation table in the functional module, is represented by a line.

Example:

Another way to attach an animation table to a functional module is described in the following table:

Step

Action

1

Display the Structural View .

2

Select the desired table in the Animation Tables directory in Structural View.

3

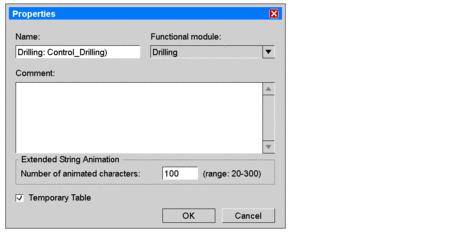

Select the Properties command from the contextual menu.

4

Select the desired functional module from the Functional Module data selection box.

Example:

5

Confirm with OK.

Backing Up an Animation Table

The backup is performed automatically.

Deleting an Animation Table

Carry out the following actions:

Step

Action

1

Select the desired table in the Animation Tables directory.

2

Select the Delete command from the contextual menu.

Properties of the Animation Table

To access the properties of the animation table, carry out the following actions:

Step

Action

1

Select the desired table in the Animation Tables directory or in the editor window.

2

Either:

  • Select the Properties command from the contextual menu,

  • or click Edit > Properties in the menu bar.

    Refer also to Animation Table Properties.
