At a Glance

In online mode you may modify the variables associated with the animated objects from an animation table.

How to modify the variables associated with objects from an animation table

The table below describes how to modify the variables associated with graphic objects from an animation table.

Step

Action

1

Select the objects for which you want to modify the variables.

Result: The selected objects appear with handles and have a dotted frame.

2

Use the Ctrl + T shortcut key or enable the Services > Initialize Animation Table command.

Result: All the variables relating to the selected objects appear in a new animation table. You can now modify their value.

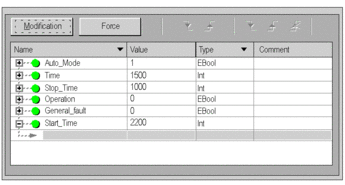

The diagram below presents an example of an animation table produced by selecting animated objects.
