At a Glance

This tab allows you to set the attributes of the .BMP, JPG or JPEG format images built into the operator screens:

  • To choose the image to be displayed,

  • To integrate the image into the project,

  • To query the size of the image (real and visual).

Image Attributes Setting Screen

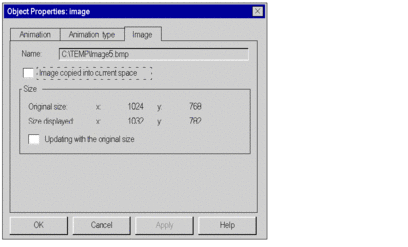

The screen below allows you to set the attributes of a bitmap image built into an operator screen.

Description

The table below describes the settings that you may define.

Field

Description

Name

This field indicates the name and the access path to the file.

Image copied into current space

When this box is checked, the file is copied and compressed in the project file (.STU or STA for an archive). Loading is faster when using the screens and the image is exported at the same time as the screen during an export.

If the image is already built into the project, this box does not appear.

Size

This information, accessible in read only gives information on the original size and the displayed size of the image. Its is used to know if the image has been modified.

Updating with the original size

When this box is checked, the image changes to its original size.

This box does not appear if the original size and the displayed size of the image are identical.
