Wiring
Original instructions
About us
5Cx Counter Inputs

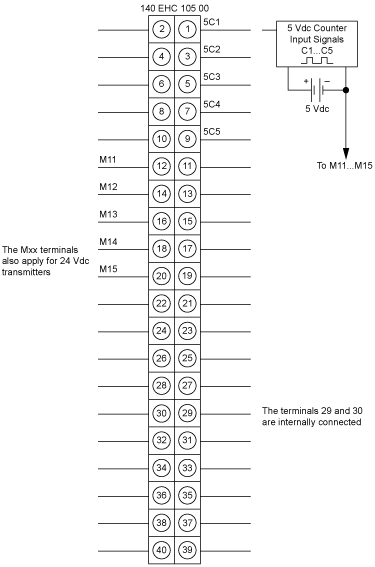

Wiring diagram for 5Cx counter inputs:
24Cx Counter Inputs

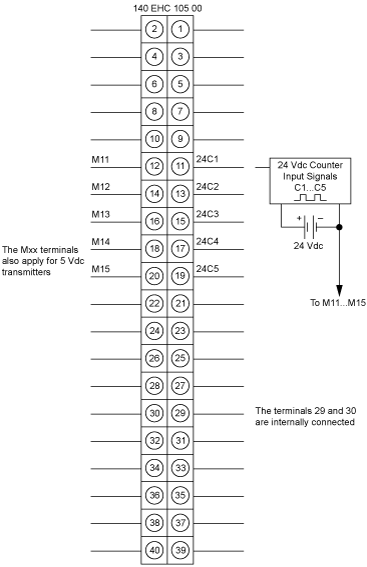

Wiring diagram for 24Cx counter inputs:
Discrete Inputs and Outputs

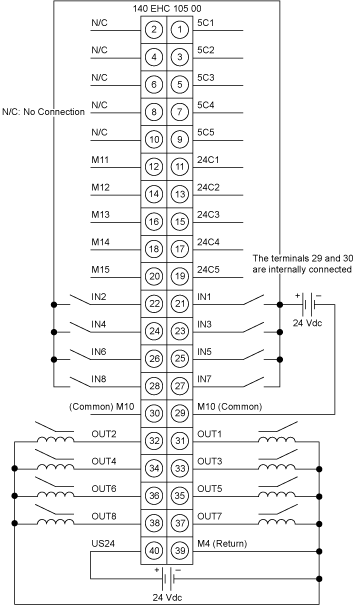

Wiring diagram for discrete inputs and outputs:
