Overview
This section provides information on the parameters, accessible in the Parameter Configuration Screen.
Parameter Configuration Default Screen

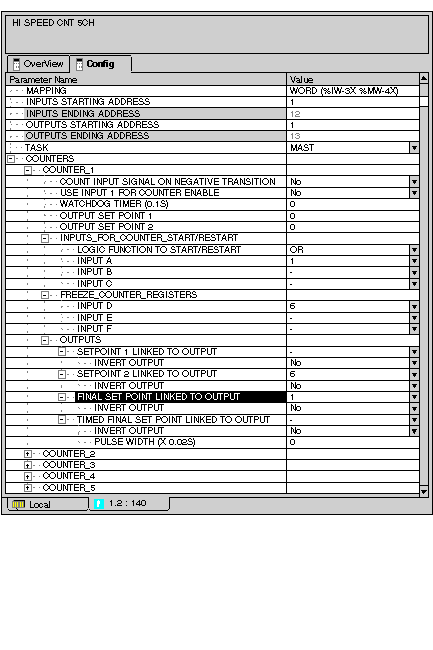

This diagram shows the Parameter Configuration default screen
Addressing and Task
This table shows the parameters for addressing and task with its values
Name
Default Value
Options
MAPPING
WORD (%IW-3X%MW-4x)
-
INPUTS STARTING ADDRESS
1
-
INPUTS ENDING ADDRESS
12
-
OUTPUTS STARTING ADDRESS
1
-
OUTPUTS ENDING ADDRESS
13
-
TASK
(Grayed if module in other than local)
MAST
FAST
AUX0
AUX1
AUX2
AUX3
Counters
This table shows the parameters for the counters with its values
Name
Default Value
Options
COUNTER_1
COUNT INPUT SIGNAL ON NEGATIVE TRANSITION
No
Yes
USE INPUT 1 FOR COUNTER ENABLE
No
Yes
WATCHDOG TIMER (0.1s)
0
0-255
OUTPUT SET POINT 1
0
0-65535
OUTPUT SET POINT 2
0
0-65535
INPUTS_COUNTER_START/RESTART
LOGIC FUNCTION TO START/RESTART COUNTER
OR
AND
INPUT A
1
-
1-8
INPUT B
-
-
1-8
INPUT C
-
-
1-8
FREEZE_COUNTER_REGISTERS
INPUT D
6
-
1-8
INPUT E
-
1-8
INPUT F
-
1-8
OUTPUTS
SETPOINT 1 LINKED TO OUTPUT
-
1-8
  • INVERT OUTPUT
No
Yes
SETPOINT 2 LINKED TO OUTPUT
6
-
1-8
  • INVERT OUTPUT
No
Yes
FINAL SETPOINT LINKED TO OUTPUT
1
-
1-8
  • INVERT OUTPUT
No
Yes
TIMED FINAL SETPOINT LINKED TO OUTPUT
-
1-8
  • INVERT OUTPUT
No
Yes
  • PULSE WIDTH (x 0.02s)
0-255
COUNTER_2
COUNTER_3
COUNTER_4
COUNTER_5
See COUNTER_1
