Configuring the Lexium 05 in PowerSuite
Original instructions
About us
Overview
PowerSuite allows to configure a drive.
PowerSuite gives access to all the configurable elements of the Lexium 05 as well as a monitoring and simulation element. Once configured, the software creates a configuration file which can be saved on the Lexium 05.
In this part, the following elements are needed:
NOTE: Required signals LIMN, LIMP and REF must be wired or deactivated by the tuning software.
Connecting and Configuring the Lexium 05
This table describes the procedure for connecting to the Lexium 05:
Step
Action
1
Connect the PC with PowerSuite to the Lexium 05 with the RJ45 and the RS232/RS485 accessory to the servodrive.
2
Start PowerSuite 2.5,

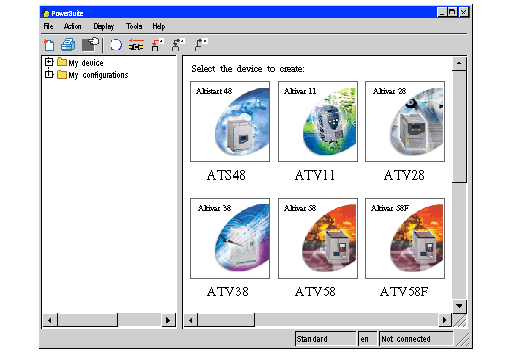

Result: the following start-up screen is displayed:
3
Right click on My Devices and then Connect.

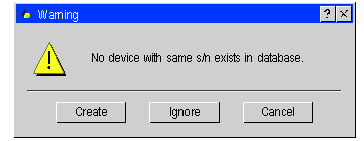

Result: a text box is displayed
Press Create.
4
Type a project name (Lexium05_PTO) and then click on OK.
Result: a transfer confirmation window is displayed.
5
The Lexium 05 configuration is transferred from the servodrive to the connected work station.
6
PowerSuite displays a configuration screen in a new window that gives access to device control, tuning and monitoring functions.
Select Basic Configuration in the Simply Start section.
Result: a window with factory settings will be displayed.

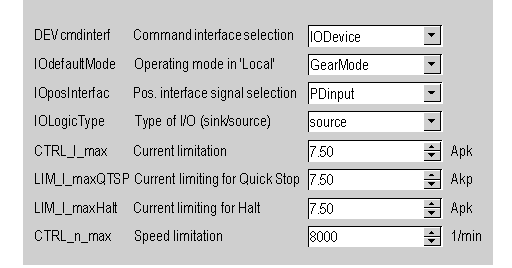

Set these settings as followed:
7
Click on the Configuration menu, then Save to EEPROM and validate by clicking on OK to save the configuration to the Lexium 05
8
Turn power off and back on to reboot the Lexium 05.
If the Lexium 05 is configured properly, it will display rdy
