It is necessary to use a USIC, an external RS422 accessory to connect the Lexium 05 drive to the PTO channel as the drive cannot be connected directly.

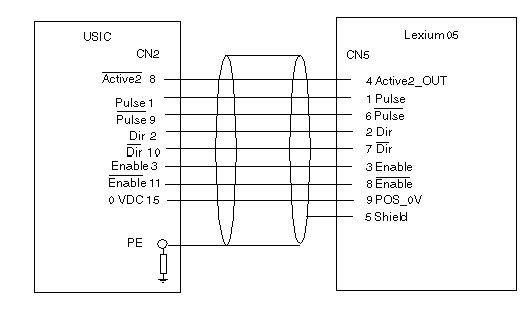

Wiring PTO Module to USIC

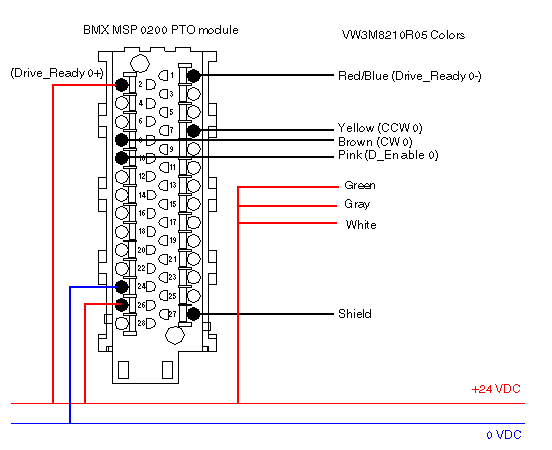

For this diagram, it is considered the PTO channel 0 is configured. A reference: VW3M8210R05 cable is required for this wiring.
This wiring can be done by using the prefabricated cable reference: VW3M8209R30 (or 05, 15, 50)

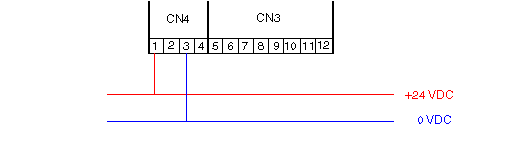

The CN4 and CN3 USIC pins need to be wired as shown:
