Configuring the Lexium 05 with the User Interface

Overview

A user interface is integrated in the Lexium 05. With this interface, you can:

Interface Menu Structure

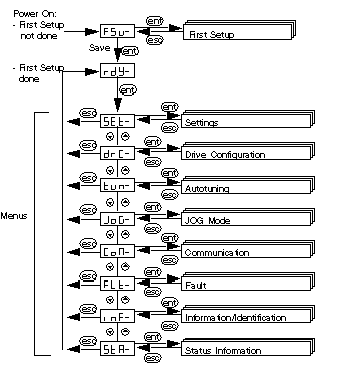

The following graphic presents an overview of access to the interface’s main menus:

Basic Settings

The following table describes the procedure for entering the settings for our application.

Step	Action
1	If the HMI has FSu- displayed, then the first setup needs to be done, refer to the Lexium 05 Simplified manual (id: 1760970) in order to do this.
2	The HMI displays rdy Press the ENT button on the interface. Result: the SET (Setting) menu is displayed on the interface’s status indicator.
3	Press ENT Press or and select iMAH, validate with ENT. Set the value to 7.50 with the or Press ENT Press ESC
4	Press or and select Li95, validate with ENT. Set the value to 7.50 with the or Press ENT Press ESC
5	Press or and select LihA, validate with ENT. Set the value to 7.50 with the or Press ENT Press ESC twice
6	Press the button several times to access the drC- menu and press Press ENT. Result: the A2Mo menu is displayed on the interface’s status indicator.
7	Press the button several times to access the io-M menu and press Press ENT.
8	Press or and select GEAr, validate with ENT. (If the previous configuration wasn’t gear, then it will blink once to validate the change). Press ESC
9	Press select ioPi, validate with ENT.
10	Press or and select Pd, validate with ENT. (If the previous configuration wasn’t Pd, then it will blink once to validate the change). Press ESC twice to return to the drC- menu
11	Press ESC to return to the main display (RDY by default).
