Positioning Buffer Mode Buffered Case
Original instructions
At a Glance
The new command is put into a buffer and executed only after the current command is completed. The current command ends normally (stops when reaching the target position).

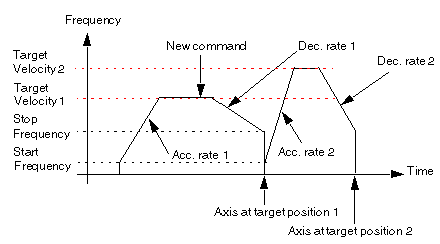

Case of Bufferizing

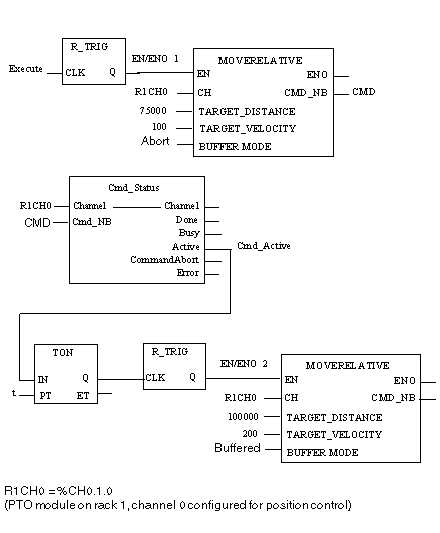

FBD Program

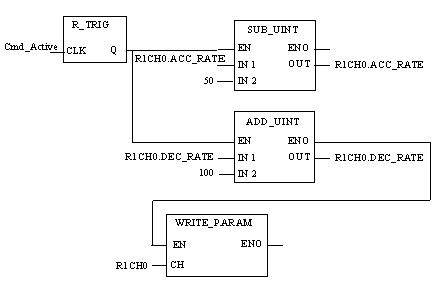

Program to obtain the above profil
Cmd_Status is the command status follow up function.

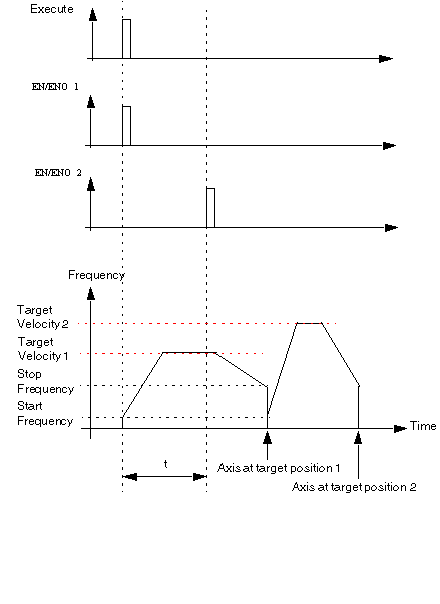

Time Diagram
Time diagram of the MOVERELATIVE Input / Output
