Positioning Buffer Mode Abort Case
Original instructions
About us
At a Glance
The new command aborts the previous one and is executed immediately.

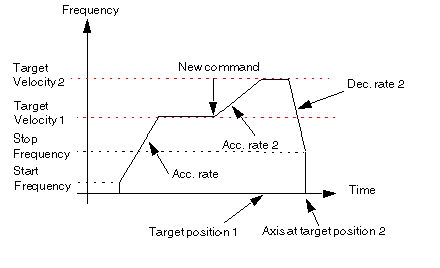

Case of Abortion

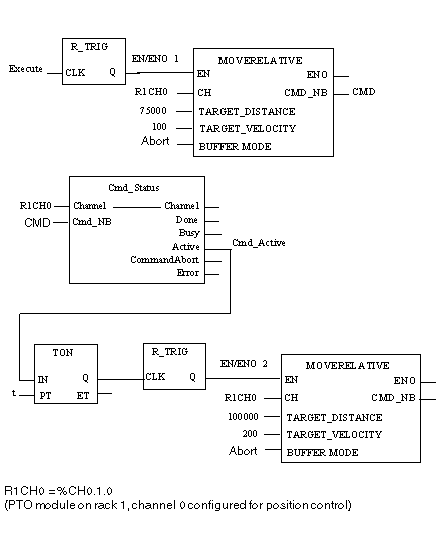

FBD Program
Program to obtain the above profile

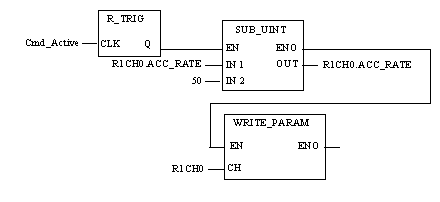

Cmd_Status is the
command status follow up function.

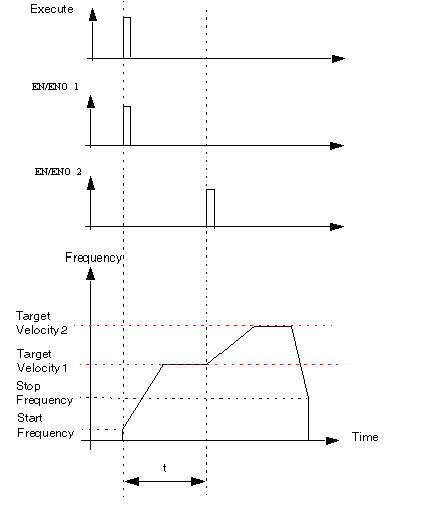

Time Diagram
Time diagram of the MOVERELATIVE Input / Output:
