Positioning Complex Profile 2
Original instructions
About us
At a Glance

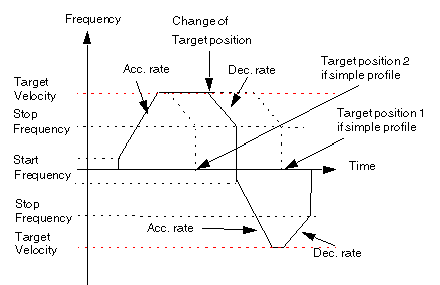

In some cases, the axis has already gone past the new target position, this will require the axis to stop and change direction:

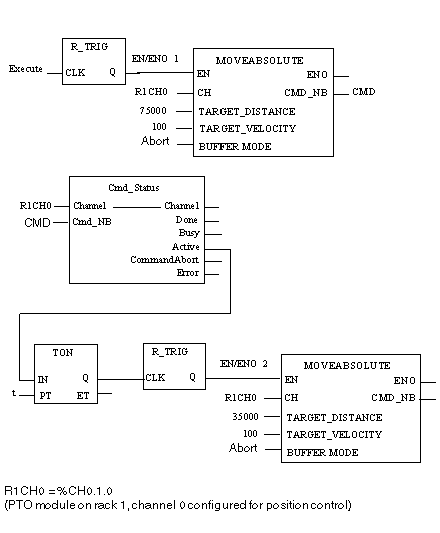

FBD Diagram
Program to obtain the above profile
Cmd_Status is the
command status follow up function.
Time Diagram

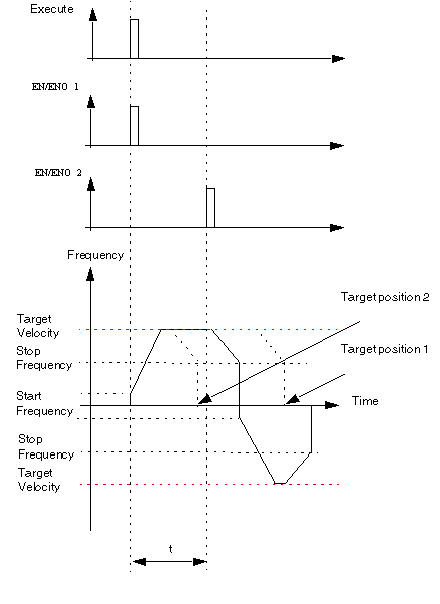

Time diagram of the MOVERELATIVE Input / Output:
