Positioning Complex Profile 1
Original instructions
About us
At a Glance

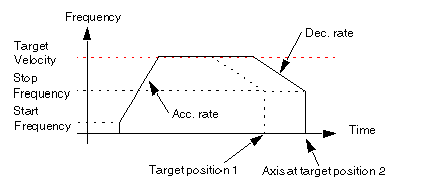

While executing a positioning command, it is possible to modify the target position on the fly:

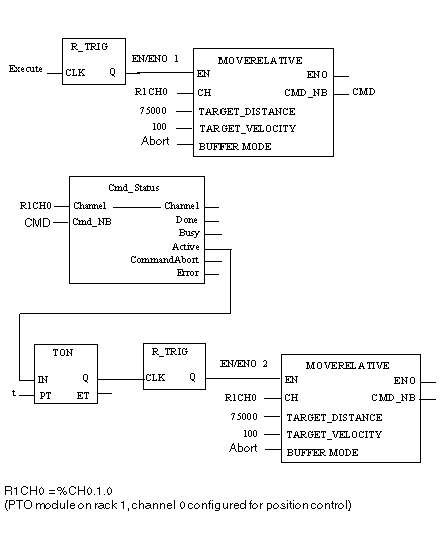

FBD Program
Program to obtain the above profile
Cmd_Status is the
command status follow up
function.

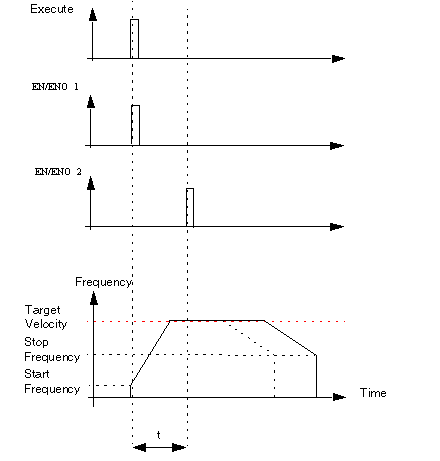

Time Diagram
Time diagram of the MOVERELATIVE Input / Output:
