Move Velocity Complex Profile 3
Original instructions
About us
At a Glance

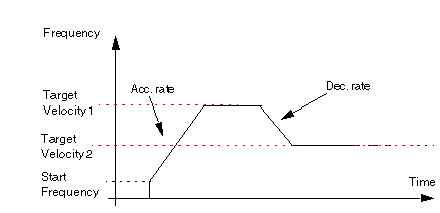

If the new target velocity is lower than the previous one, there will be a deceleration ramp.

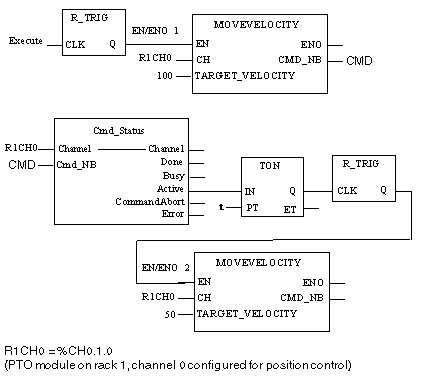

FBD Program
Program to obtain the profile
Cmd_Status is the
command status follow up function.

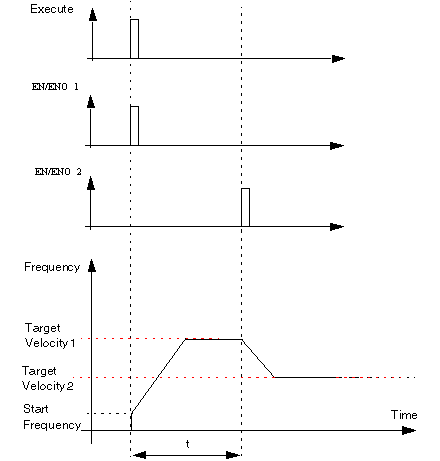

Time Diagram
This is the time diagram of the MOVEVELOCITY Input / Output:
