Move Velocity Complex Profile 2
Original instructions
About us
At a Glance

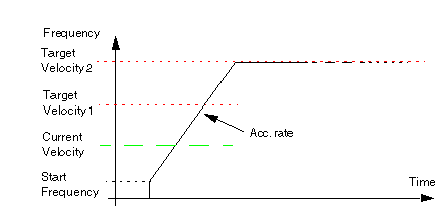

If the first target velocity has not been reached, the target velocity can be changed during acceleration/deceleration phase):

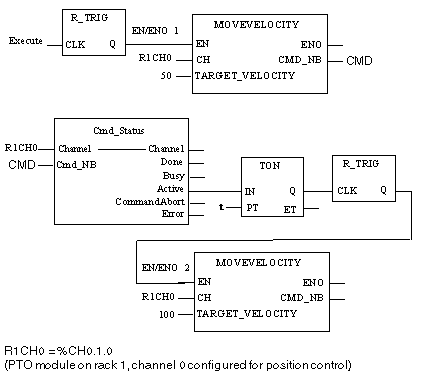

FBD Program
Program to obtain the profile
Cmd_Status is the
command status follow up
function.

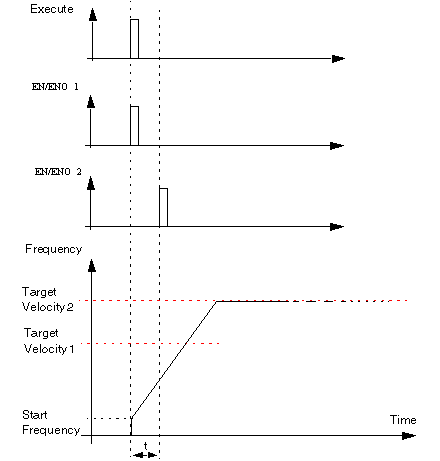

Time Diagram
This is the time diagram of the MOVEVELOCITY Input / Output:
