Move Velocity Complex Profile 1
Original instructions
At a Glance
When a velocity profile is being output, it is possible to modify the target velocity to a higher or a lower value, such as shown by the figures below:

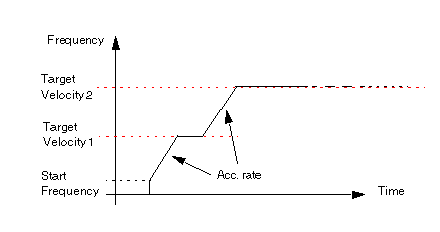

MoveVelocity - change of velocity

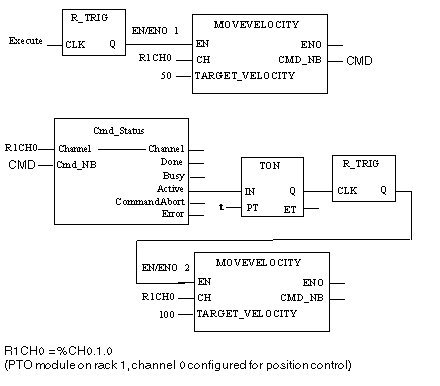

FBD Program
Program to obtain the profile
Cmd_Status is the command status follow up function.

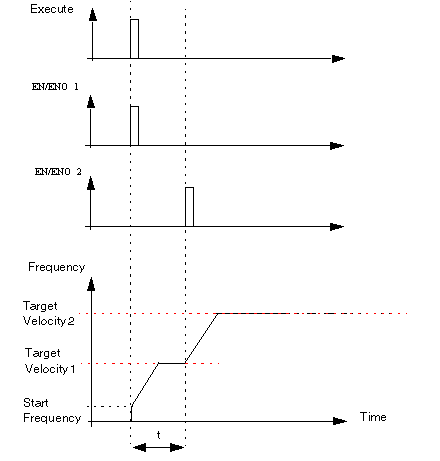

Time Diagram
Time diagram of the MOVEVELOCITY Input / Output
